Table comparing Oerlikon Leybold rotary vane vacuum pumps to
SKV-tec rotary vane vacuum pumps

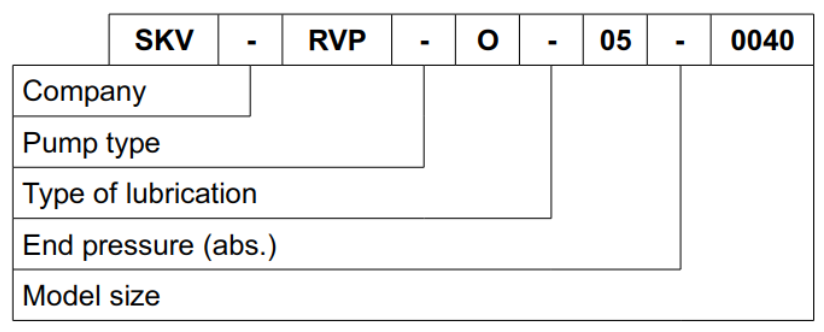

Model designationPump type: RVP = rotary vane vacuum pump
Type of lubrication: O = Oil lubricated, D = dry running
End pressure: e.g.: 05 = 0.5 mbar
Model size: max. air flow in m³/h
Note:
This information only refers to similar amounts of pressure, vacuum or airflow. Refer to the data sheets regarding differences in dimension.

Single stage side channel blowers

Type description SKV-tec

max. air flow

abs. end pressure

engine power

Sogevac series
SKV-RVP-O-20-002020 m3/h2 mbar0,75 kW~ SV 25 B (0,9 kW)
SKV-RVP-O-20-0020-120 m3/h2 mbar0,75 kW (1~)
SKV-RVP-O-05-004040 m3/h0,5 mbar1,40 kWSV 40 B (1,1 kW)
SKV-RVP-O-05-006363 m3/h0,5 mbar2,00 kWSV 65 B (1,5 kW)
SKV-RVP-O-05-0100100 m3/h0,5 mbar2,70 kWSV 100 B (2,2 kW)
SKV-RVP-O-05-0160160 m3/h0,5 mbar4,00 kW~ SV 120 B (2,4 kW)
SKV-RVP-O-05-0200200 m3/h0,5 mbar4,00 kWSV 200 (4,0 kW)
SKV-RVP-O-05-0250250 m3/h0,5 mbar5,50 kW
SKV-RVP-O-05-0300300 m3/h0,5 mbar7,50 kWSV 300 B (5,5 kW)



1) Differences in voltage
2) Identical in amounts of airflow / pressure and measurements
(given data at 50 Hz)

All brands, trademarks and registered trademarks are properties of their respective owners
The comparable models may not be identical in some aspects such as airflow, pressure and measurements and need to be verified by the respective user.
