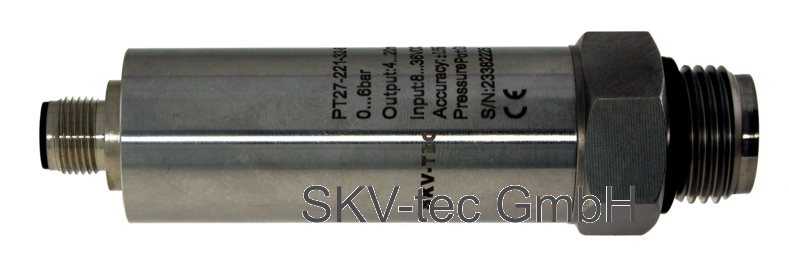

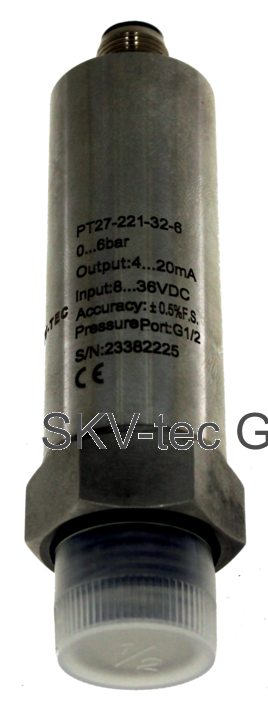

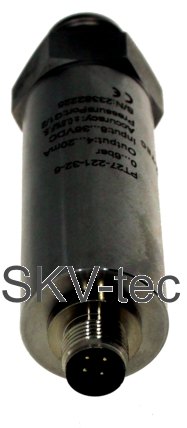

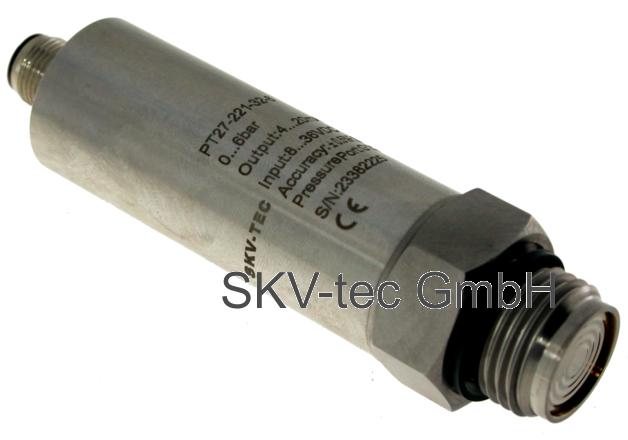

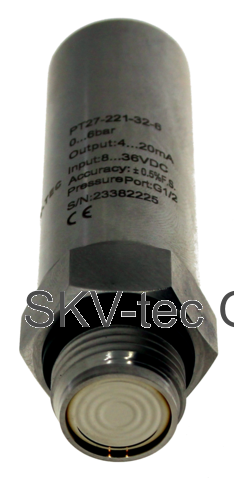

with M12 plug, A coded 4-pin. Pressure range 0 to 6 bar. 4 to 20 mA signal. G 1/2" medium connection.
This sensor was developed to be able to measure pressure in a contamination-resistant manner, especially with media that can form deposits. The special surface of the pressure transducer makes deposits more difficult and makes cleaning easier, while the design avoids small cross-sections that can quickly become clogged. In addition to the usual tasks of sensors, such as feedback for control systems or continuous monitoring, this sensor is also suitable for replacing pressure switches. Thanks to the high-quality materials, the pressure can be monitored in a wide range of media. The pressure sensor is temperature-compensated up to 80°C to increase measuring accuracy.
The pressure sensors are generally available from stock with 0.5% measuring accuracy.
Further options are available as special orders, for example output signals with lower voltages on single-board computers, or other common threaded connections for the medium.
electrical connection: | M12 - 4-pole |
electrical connection: | M12 - 4-pole |
