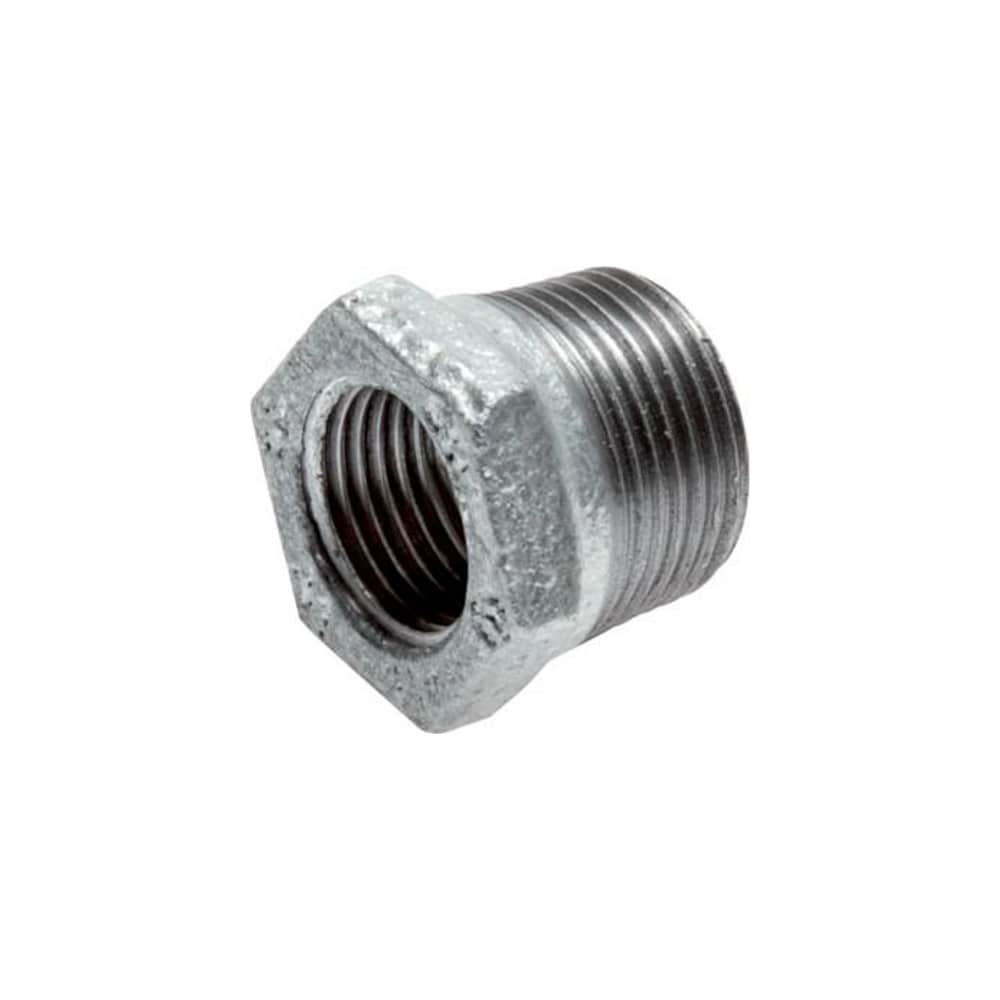

Product information "Adapter G 1/2" - 2""

suitable for: Side channel blowers and rotary vane vacuum pumps

Function: In order to install certain peripherals (e.g. vacuum manometers, vacuum control valves) a suitable adapter and, if necessary, a connection piece (T-neck or cross fitting) is needed.

Technical data:

common connections:

Pressure-manometer to monitor exhaust filters:
- AG ¾" to IG ¼" (for manometers with G ¼")
- AG ¾" to IG ½" (for manometers with G ½")
Vacuum-manometer on T-neck or cross-piece:
- G ¾" to G ¼" / ½" (for SKV-RVP-O-20-0020)
- G 1¼" to G ¼" / ½" (for SKV-RVP-O-05-0040 to -0100)
- G 2" to G ¼" / ½" (for SKV-RVP-O-05-0160 to -0300)
Vacuum control valve at T-neck or cross-piece:
- G 1¼" to G 1" / ¾" (for SKV-RVP-O-05-0040 to -0063)

Material:

- Brass
- malleable cast iron, galvanized
- PVC-U (only suitable for rotary vane pumps under certain conditions)
