High temperature pressure sensor PT23 - DIN 43650A

SKV-tec GmbH

€147.29*

Prices excl. VAT plus shipping costs

Available, delivery time: heavily dependent on the destination

Pressure range

-1 ~ 0 bar

-1 ~ 1 bar

0 ~ 1 bar

0 ~ 16 bar

Signal

4 - 20 mA

Product number: 1052321113

Product information "High temperature pressure sensor PT23 - DIN 43650A"

with DIN 43650A plug as connection (18 mm). Other designations for the connection are valve connector and standard connector according to DIN EN 175301-803.

This sensor was developed to favourably measure the pressure of media with higher temperatures. Due to the additional cooling fins compared to the basic model PT2, media with temperatures of up to 260°C can be monitored. In addition to the usual tasks of sensors, such as feedback for control systems or continuous monitoring, this sensor is also suitable for replacing pressure switches. Thanks to the high-quality materials, the pressure can be monitored in a wide range of media. An FFKM seal is used on the thread to the medium. The pressure sensor is partially temperature-compensated to increase the measuring accuracy.
The pressure sensors are generally available from stock with 0.5% measuring accuracy. For this electrical connection, we offer various displays as accessories, modular according to your requirements.

Further options are available as special orders, for example output signals with lower voltages on single-board computers, or other common threaded connections for the medium.

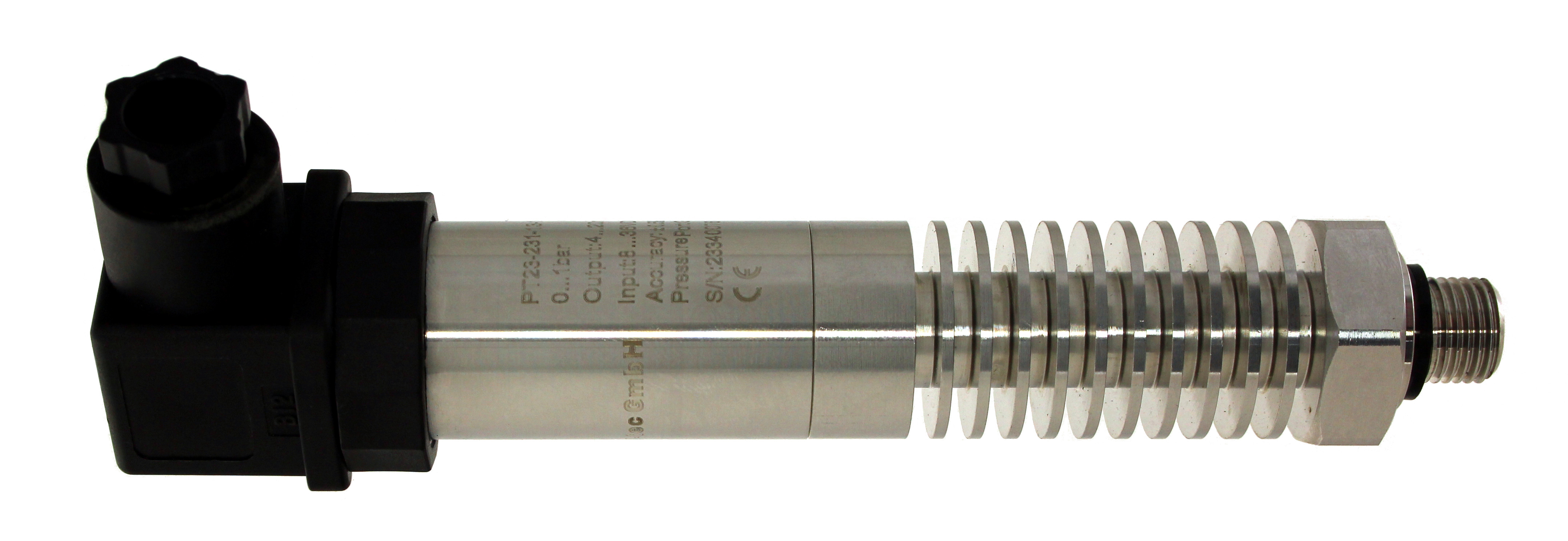

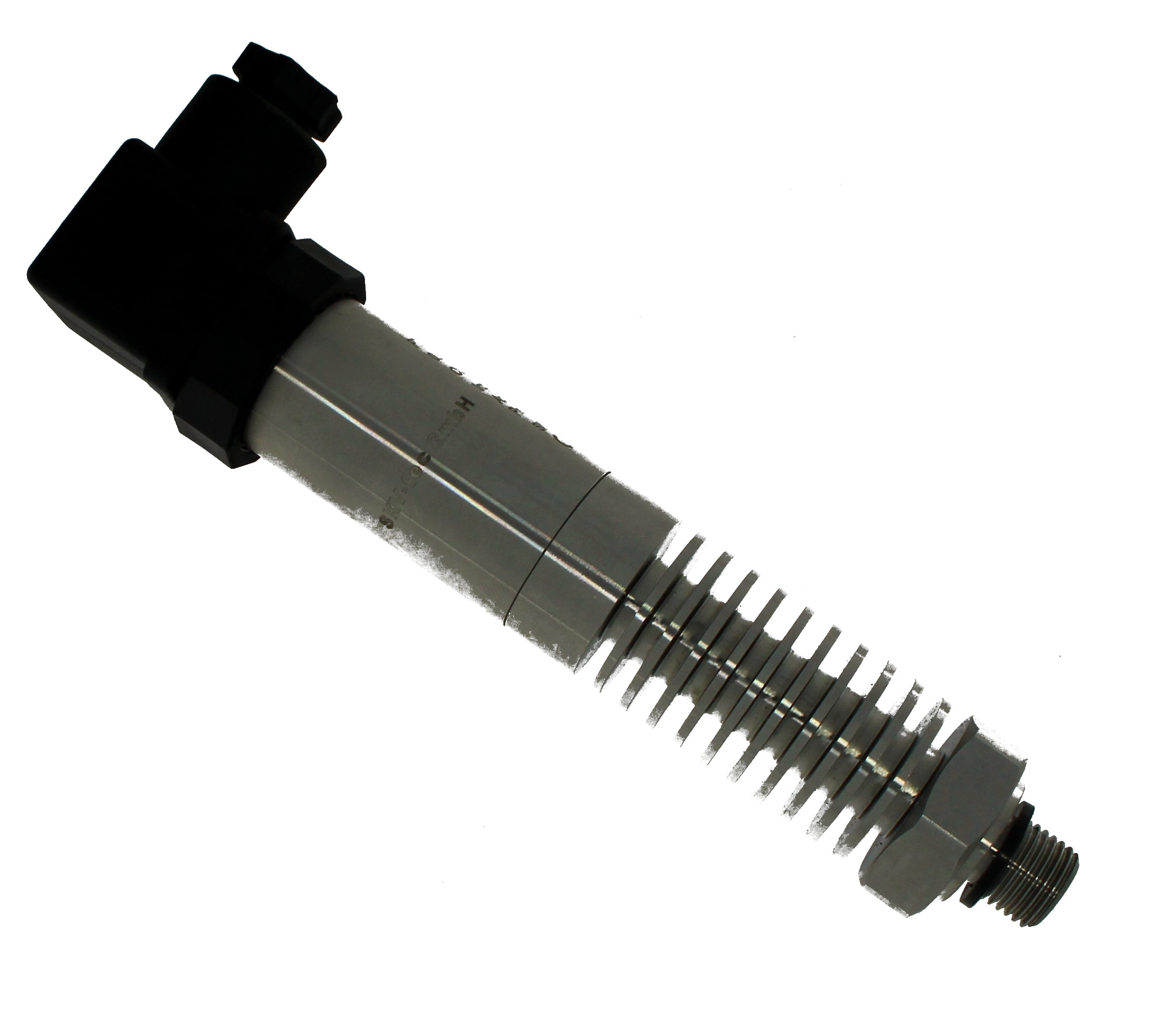

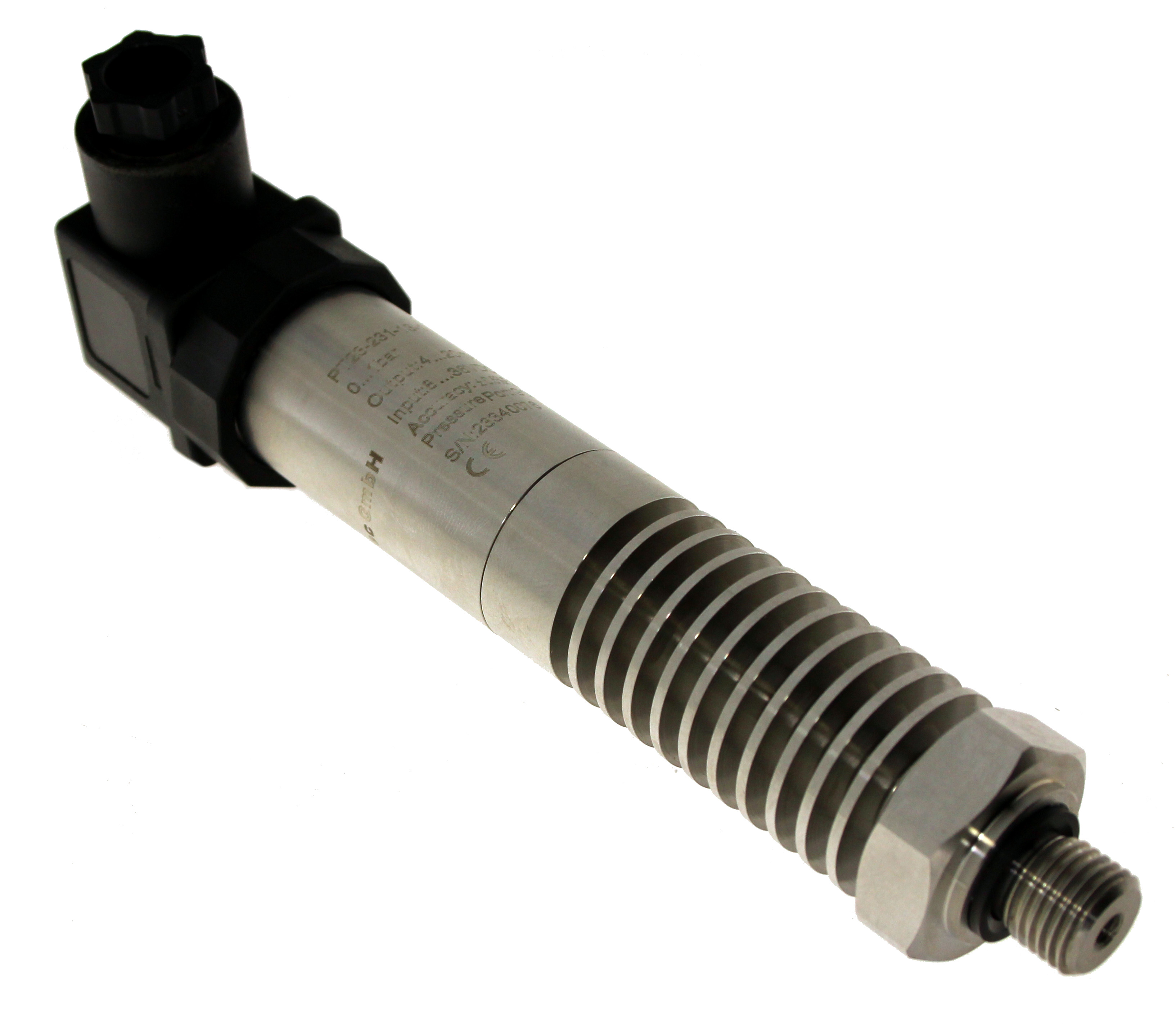

Scope of delivery: Sensor and angle connector as shown in the picture

Electrical connection:	DIN 43650A
